[How-To] Deploy HUB Licensed VMs in Azure

What is HUB and why should I use it?

For customers that are looking to go to Azure and help cut down on some of the running costs by utilizing existing licensing they own from on-premises, Microsoft has released a program called Hybrid Use Benefit (HUB).  The Hybrid Use Benefit program essentially allows you to run  VMs in Azure at a reduced rate (cost of a Linux VM for example), under the assumption that you have volume license keys covering the core totals of VMs running in Azure.

Official information on this program can be found here: https://azure.microsoft.com/en-us/pricing/hybrid-use-benefit/

A Microsoft employee has created some instructions on how Microsoft customers can take use of this program.  Unfortunately, as outlined in the document, there is no way as of 6/27/2016 to take an existing VM in Azure and convert it to the HUB program.  A VM must originate from on-premises in order to take advantage of this program, there are no workarounds such as building the VM in Azure, downloading it to on-prem, and reuploading it back to Azure.  In this case, this article will cover the necessary steps (step by step) on getting a "HUB" VM deployed in Azure.

Update: October 24, 2016: HUB is now supported on Azure Site Recovery for failed over instances to Azure from another datacenter.  Information on leveraging HUB for ASR instances can be found here: https://azure.microsoft.com/en-us/blog/hybrid-use-benefit-migration-with-asr/

Goal: This article will focus on 3 items:

  1. How to properly configure a VHD for the HUB program
  2. How to upload the VHD into Azure
  3. How to deploy VMs from your VHD

1. How to properly configure a VHD for the HUB program

There are two ways you can bring a HUB image into Azure.  You can convert the ISO from Microsoft to a VHD directly, or you can install Hyper-V, update/customize the VM, and generalize it.

In this tutorial, we will go over converting the Microsoft provided ISO to VHD, under the assumption you do not have Hyper-V installed.  In the scenario where you do not have Hyper-V, but you want to customize the image before uploading it into Azure, I would recommend installing the Hyper-V role on your Windows 7/10 machine and creating the VHD from that.  The only caveat you will run into is you must run SysPrep before uploading the VHD into Azure, as outlined here.

Hyper-V Way

For the Windows 7/10 machines, you can install the Hyper-V role by navigating to Programs and Features, select Turn Windows features on or off

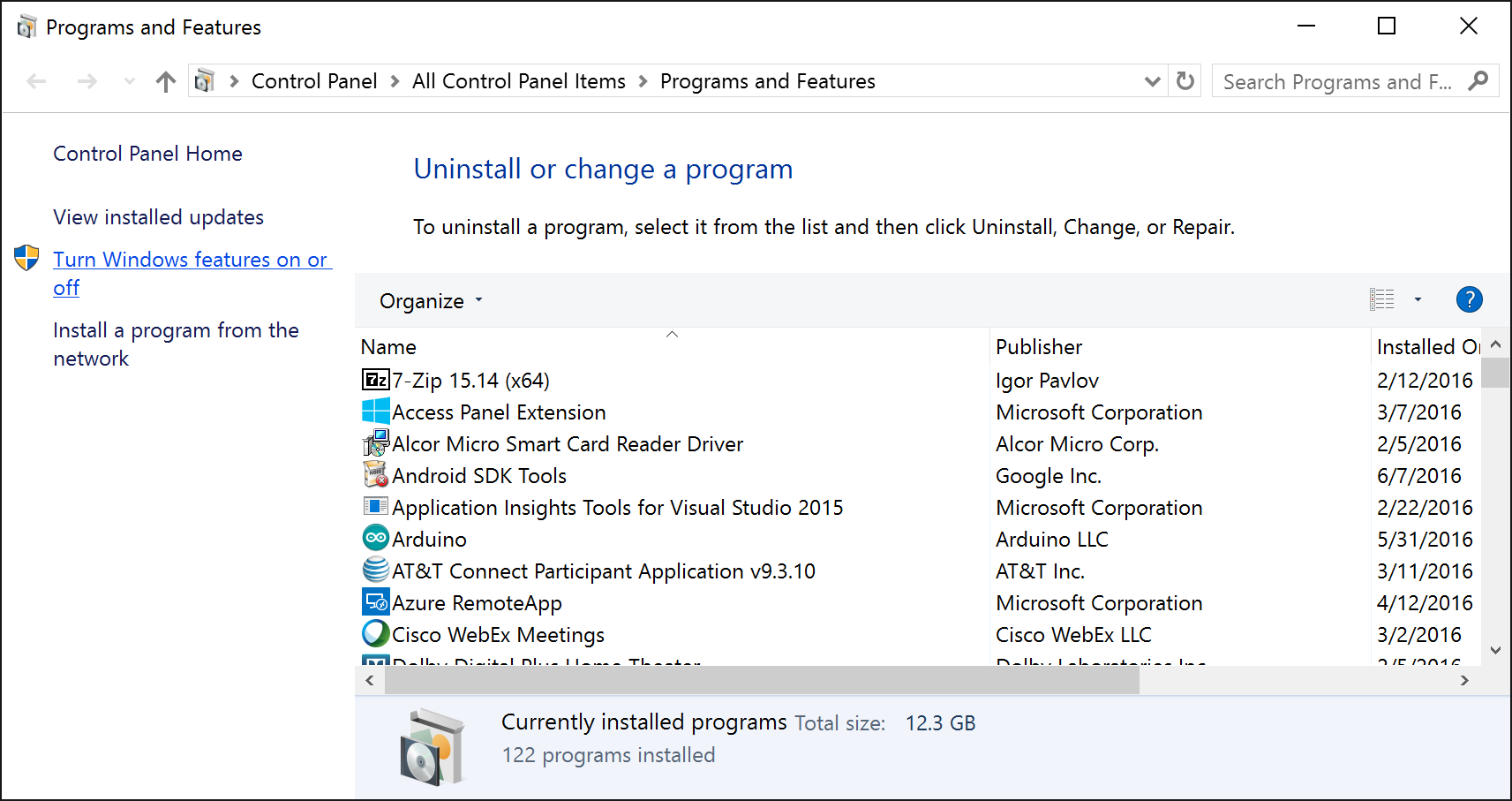

Control Panel - Programs and Features - Turn windows features on or off

Check Hyper-V from the list.
Control Panel - Programs and Features - Turn windows features on or off - Hyper-V

Additionally, installation via PowerShell or DISM is covered in this Microsoft blog post: https://msdn.microsoft.com/en-us/virtualization/hyperv_on_windows/quick_start/walkthrough_install

Again, ensure after making changes to your VHD, you generalize the machine and shut it down as outlined here: https://azure.microsoft.com/en-us/documentation/articles/virtual-machines-windows-upload-image/

PowerShell Way

A few Microsoft employees/consultants have released a PowerShell script that will take a Microsoft provided ISO and convert/generalize it into VHD format.  We can simply take this converted VHD and upload it into Azure as-is.  Please note, the only downside to creating the VM this way is that the machine may not be completely patched, so you will have to rely on the machines doing Windows Updates once they make it into the lands of Azure.

Pro Tip: If you are going to create the VHD from an ISO, I would recommend doing this from an Azure VM.  Since the VHD/disk we are creating will originate from the source media of a "local instance", your VM will deploy fine with HUB licensing.  The advantage of creating the VM in Azure is the upload of your VM will take significantly less time due to the high throughput of egress traffic in Azure.  When going through this tutorial, I ended up maxing out my storage account's read rate before hitting network connectivity bottlenecks.  Please note, bandwidth fees may apply in Azure for utilizing this method though.

  1. Download the Convert-WindowsImage.ps1 script from Microsoft
    1. https://gallery.technet.microsoft.com/scriptcenter/Convert-WindowsImageps1-0fe23a8f
  2. Download your Windows Server ISO from the Microsoft Volume Licensing center
    1. https://www.microsoft.com/Licensing/servicecenter/default.aspx
  3. Open PowerShell as an Administrator
    Server 2012 - PowerShell - Run as Administrator
  4. Navigate to the directory that contains both the ISO and the Covert-WindowsImage.ps1 script

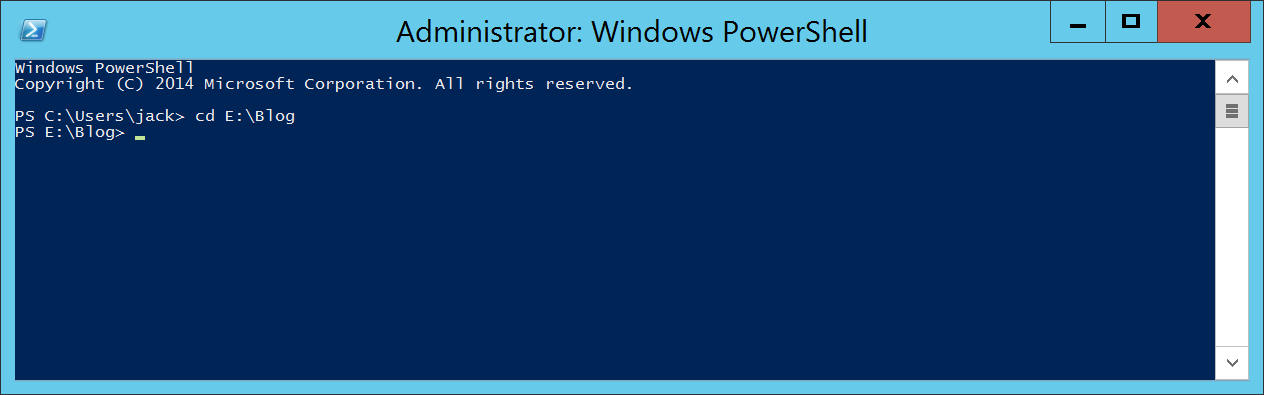

    Convert-WindowsImage and Windows Server ISO - PowerShell
  5. Execute the following command to pre-load (dot-source) the PowerShell function

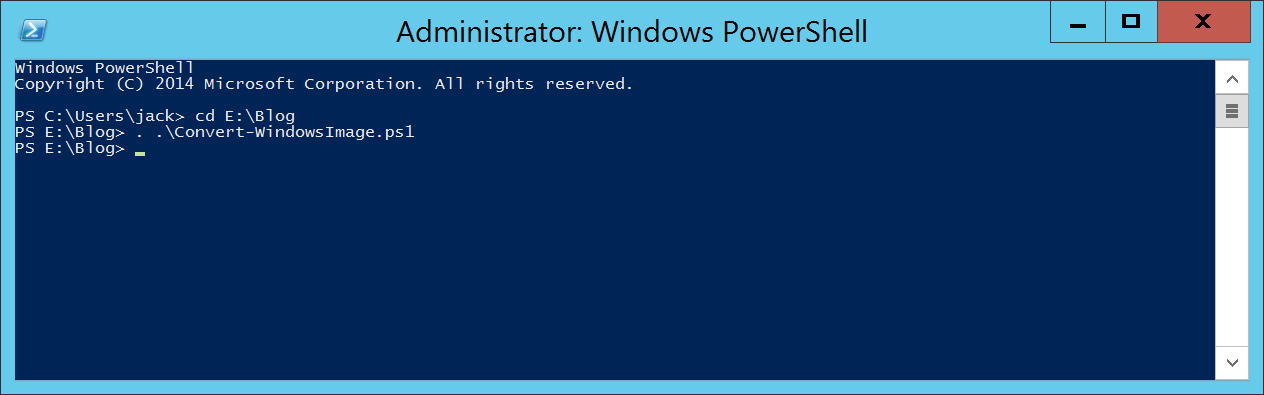

    Convert-WindowsImage and Windows Server ISO - PowerShell - Load Function

    . .\Convert-WindowsImage.ps1
  6. Execute the following command

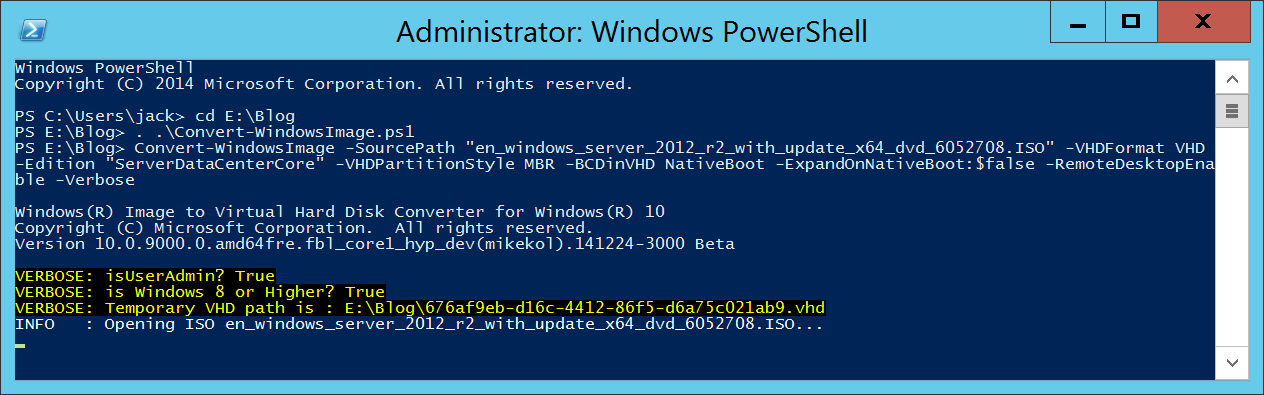

    Convert-WindowsImage and Windows Server ISO - PowerShell - Execute Function

    Convert-WindowsImage -SourcePath "en_windows_server_2012_r2_with_update_x64_dvd_6052708.ISO" -VHDFormat VHD -Edition "ServerDataCenterCore" -VHDPartitionStyle MBR -BCDinVHD NativeBoot -ExpandOnNativeBoot:$false -RemoteDesktopEnable -Verbose
  7. You should receive a "Done" message once the VHD has been created

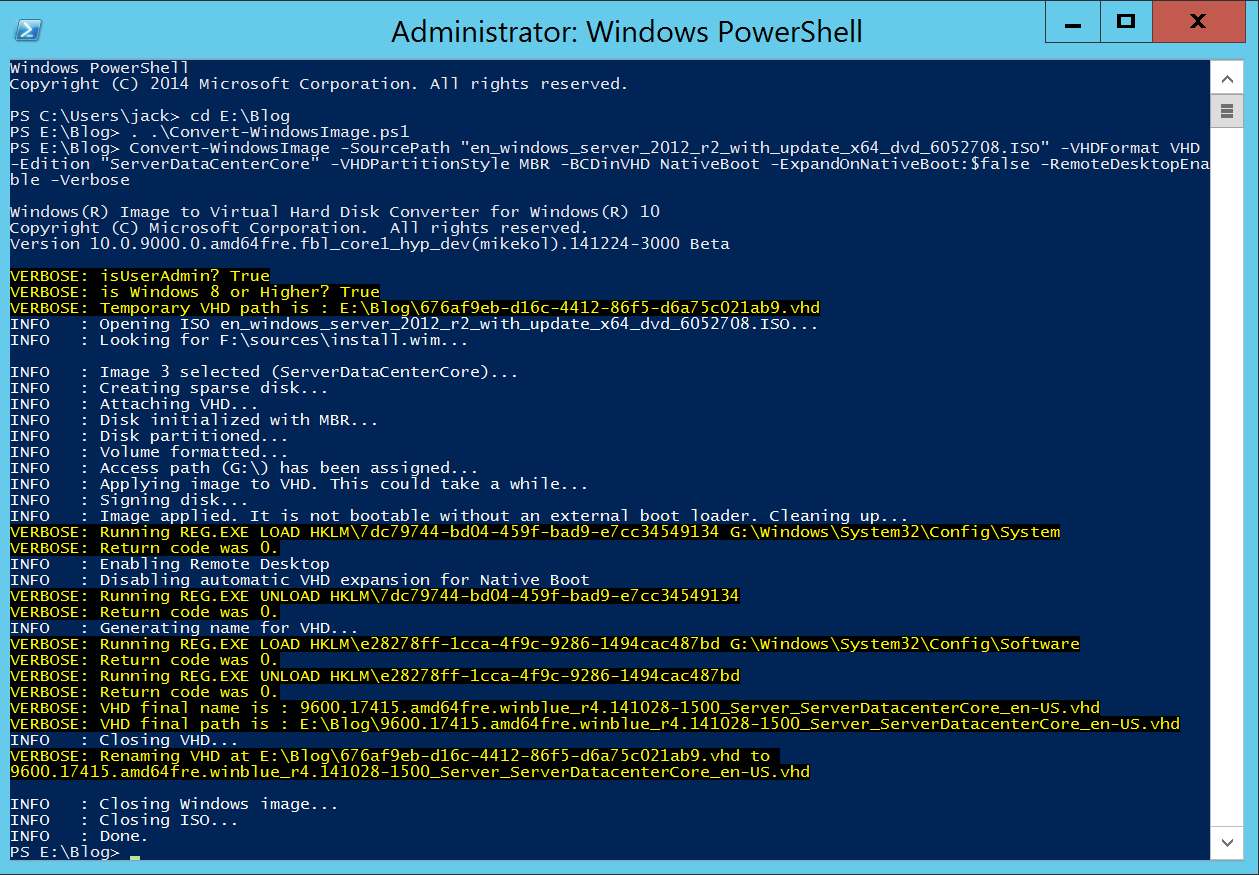

    Convert-WindowsImage and Windows Server ISO - PowerShell - Execute Function -Completed

2. How to upload the VHD into Azure

First, you will need the latest Azure PowerShell Modules.  These can be downloaded for free from the Azure website.  If you are new to Azure, this will be a link to the Web Platform installer, in which the link below should automatically select the Azure PowerShell modules to be downloaded.  You do not need the Command Line installer if prompted, only the Azure PowerShell Modules.

https://www.microsoft.com/web/handlers/webpi.ashx/getinstaller/WindowsAzurePowershellGet.3f.3f.3fnew.appids

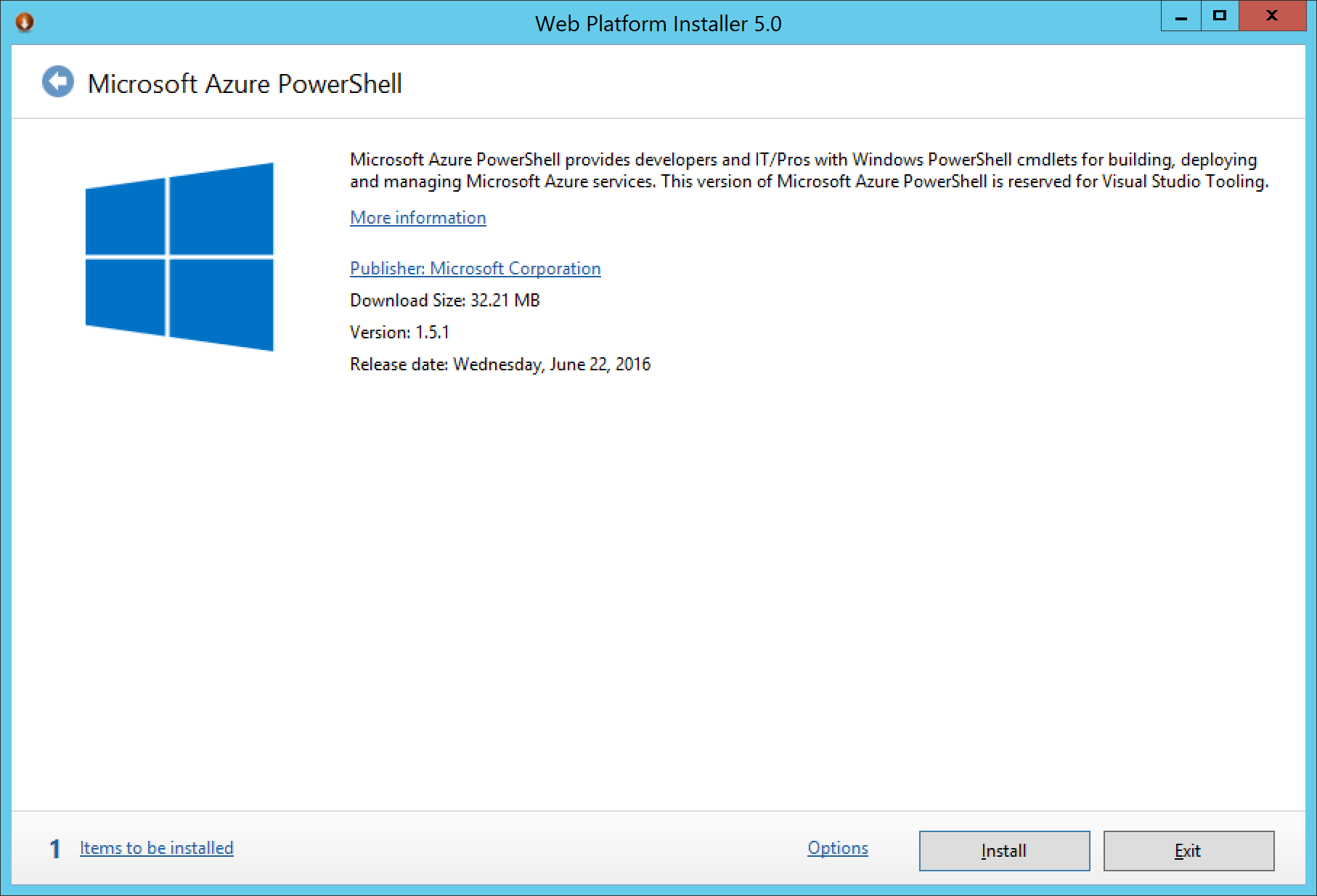

Web Platform Installer 5 - Microsoft Azure PowerShell

Once installed, complete the instructions below.

  1. Open up PowerShell
    Server 2012 - PowerShell - Run as Administrator
  2. Login to your Azure account

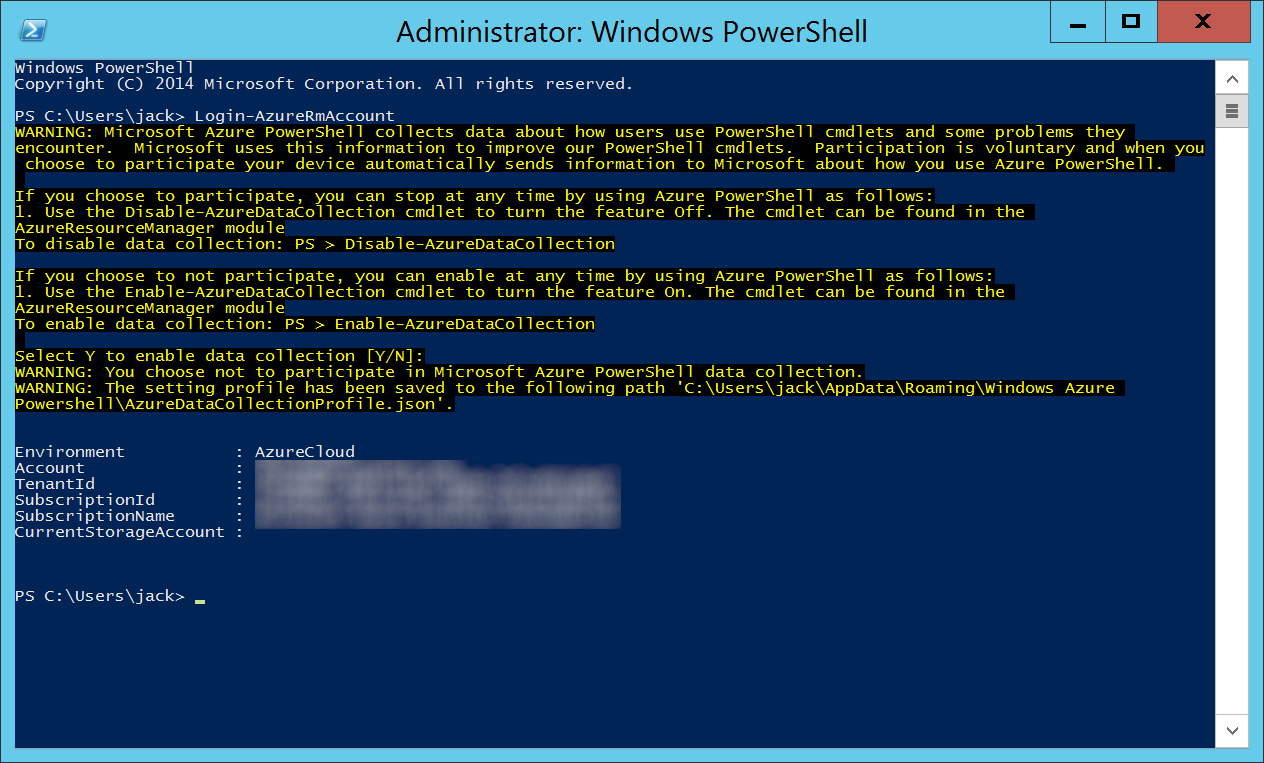

    Login-AzureRmAccount

    Login-AzureRmAccount
  3. Execute the following command below, substituting in the correct values applicable to your environment:
    -RessourceGroupName - Specifies the name of the resource group of the virtual machine.
    -Destination - Specifies the URI of a blob in Blob Storage. The parameter supports SAS URI, although patching scenarios destination cannot be an SAS URI.  My URL shows Premium storage, but Premium storage is not required for HUB.
    -LocalFilePath - Specifies the path of the local .vhd file.

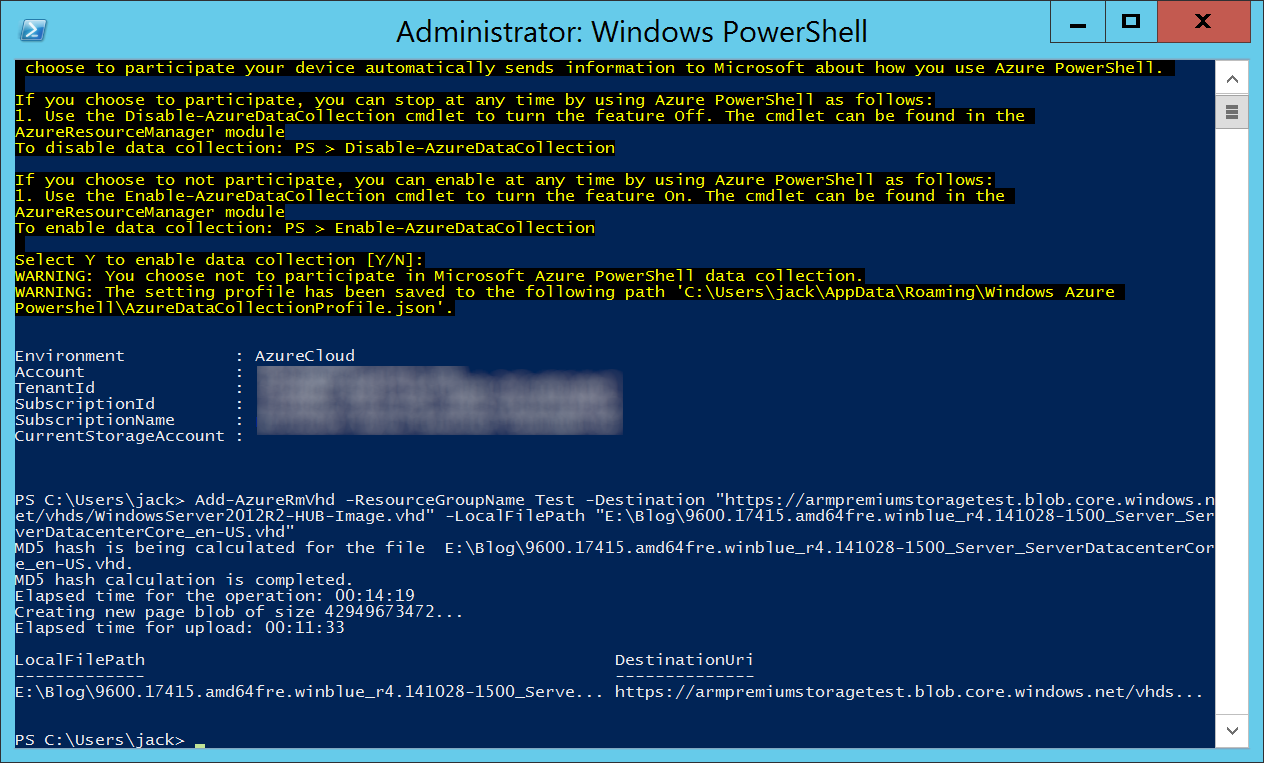

    Login-AzureRmAccount - Add-AzureRmVhd - Completed

    Add-AzureRmVhd -ResourceGroupName Test -Destination "https://armpremiumstoragetest.blob.core.windows.net/vhds/WindowsServer2012R2-HUB-Image.vhd" -LocalFilePath "E:\Blog\9600.17415.amd64fre.winblue_r4.141028-1500_Server_ServerDatacenterCore_en-US.vhd"

3. How to deploy VMs from your VHD

Copy the template below:

{
  "$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
  "contentVersion": "1.0.0.0",
  "parameters": {
    "vmName": {
      "type": "string",
      "metadata": {
        "description": "Name of the VM you wish to deploy"
      }
    },
	"VMStorageAccount": {
      "type": "string",
      "metadata": {
        "description": "This is the name of the your storage account to deploy the VM to"
      }
    },
	"virtualNetworkName": {
      "type": "string",
      "metadata": {
        "description": "Name of the virtual network the VM should be deployed to"
      }
    },
	"subnetName": {
      "type": "string",
      "metadata": {
        "description": "Name of the subnet the VM should be deployed to"
      }
    },
	"publicIPAddressName": {
      "type": "string",
      "metadata": {
        "description": "Name of the public IP address for your VM."
      }
    },
    "dnsLabelPrefix": {
      "type": "string",
      "metadata": {
        "description": "DNS Label for the Public IP. Must be lowercase. It should match with the following regular expression: ^[a-z][a-z0-9-]{1,61}[a-z0-9]$ or it will raise an error."
      }
    },
    "adminUserName": {
      "type": "string",
      "metadata": {
        "description": "UserName for the Virtual Machine"
      }
    },
    "adminPassword": {
      "type": "securestring",
      "metadata": {
        "description": "Password for the Virtual Machine"
      }
    },
	"publicIPAddressType": {
      "type": "string",
      "allowedValues": [
        "Dynamic",
        "Static"
      ],
	  "defaultValue": "Dynamic",
      "metadata": {
        "description": "IP Address type for the public IP of the VM"
      }
    },
    "vmSize": {
      "type": "string",
      "metadata": {
        "description": "This is the size of your VM"
      },
	  "defaultValue": "Standard_DS1_v2"
    }
  },
  "variables": {
    "location": "[resourceGroup().location]",
    "nicName": "[concat(parameters('vmName'),'nic')]",
	"osDiskVhdUri": "https://myosdiskvhduri.blob.core.windows.net/vhds/myimage.vhd",
	"osType": "Windows",
    "vnetID": "[resourceId('Microsoft.Network/virtualNetworks',parameters('virtualNetworkName'))]",
    "subnet1Ref": "[concat(variables('vnetID'),'/subnets/',parameters('subnetName'))]",
    "osDiskVhdName": "[concat('https://',parameters('VMStorageAccount'),'.blob.core.windows.net/vhds/',parameters('vmName'),'-osDisk.vhd')]",
    "apiVersion": "2015-06-15"
  },
  "resources": [
    {
      "apiVersion": "[variables('apiVersion')]",
      "type": "Microsoft.Network/publicIPAddresses",
      "name": "[parameters('publicIPAddressName')]",
      "location": "[variables('location')]",
      "properties": {
        "publicIPAllocationMethod": "[parameters('publicIPAddressType')]",
        "dnsSettings": {
          "domainNameLabel": "[parameters('dnsLabelPrefix')]"
        }
      }
    },
    {
      "apiVersion": "[variables('apiVersion')]",
      "type": "Microsoft.Network/networkInterfaces",
      "name": "[variables('nicName')]",
      "location": "[variables('location')]",
      "dependsOn": [
        "[concat('Microsoft.Network/publicIPAddresses/', parameters('publicIPAddressName'))]"
      ],
      "properties": {
        "ipConfigurations": [
          {
            "name": "ipconfig1",
            "properties": {
              "privateIPAllocationMethod": "Dynamic",
              "publicIPAddress": {
                "id": "[resourceId('Microsoft.Network/publicIPAddresses',parameters('publicIPAddressName'))]"
              },
              "subnet": {
                "id": "[variables('subnet1Ref')]"
              }
            }
          }
        ]
      }
    },
    {
      "apiVersion": "[variables('apiVersion')]",
      "type": "Microsoft.Compute/virtualMachines",
      "name": "[parameters('vmName')]",
      "location": "[variables('location')]",
      "dependsOn": [
        "[concat('Microsoft.Network/networkInterfaces/', variables('nicName'))]"
      ],
      "properties": {
        "licenseType": "Windows_Server",
        "hardwareProfile": {
          "vmSize": "[parameters('vmSize')]"
        },
        "osProfile": {
          "computerName": "[parameters('vmName')]",
          "adminUsername": "[parameters('adminUsername')]",
          "adminPassword": "[parameters('adminPassword')]"
                 },
        "storageProfile": {
          "osDisk": {
            "name": "[concat(parameters('vmName'),'-osDisk')]",
            "osType": "[variables('osType')]",
            "caching": "ReadWrite",
            "createOption": "FromImage",
            "image": {
              "uri": "[variables('osDiskVhdUri')]"
            },
            "vhd": {
              "uri": "[variables('osDiskVhdName')]"
            }
          }
        },
        "networkProfile": {
          "networkInterfaces": [
            {
              "id": "[resourceId('Microsoft.Network/networkInterfaces',variables('nicName'))]"
            }
          ]
        },
        "diagnosticsProfile": {
          "bootDiagnostics": {
             "enabled": "true",
             "storageUri": "[concat('https://',parameters('VMStorageAccount'),'.blob.core.windows.net')]"
          }
        }
      }
    }
  ]
}
  1. Login to the Azure Portal
    1. https://portal.azure.com

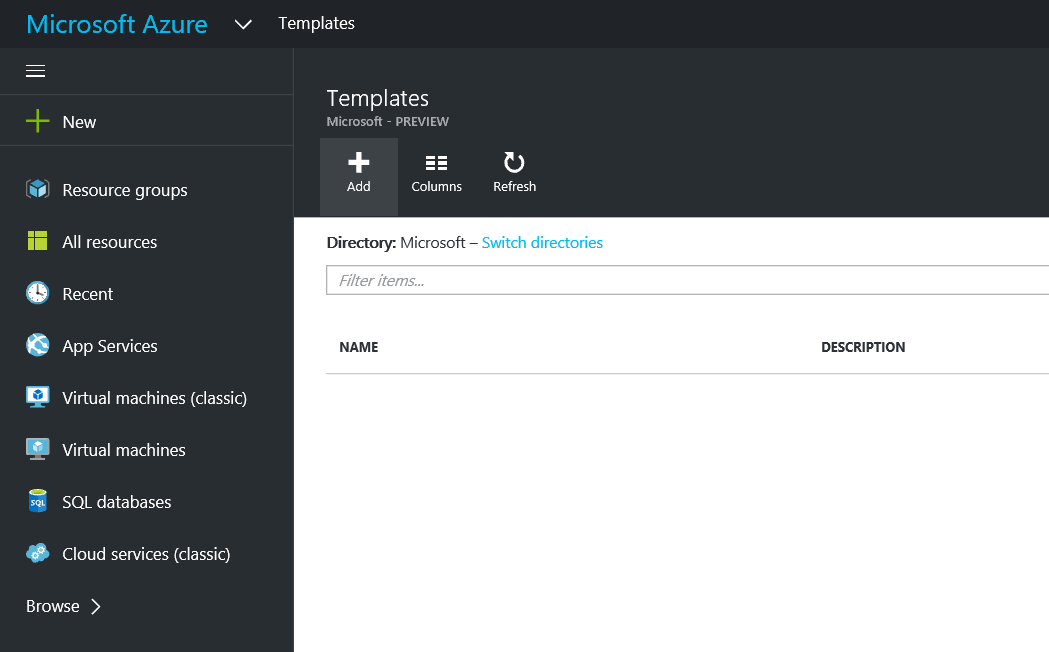

  2. Select Browse, click Templates, click Add
    Azure - Browse - Templates - Add

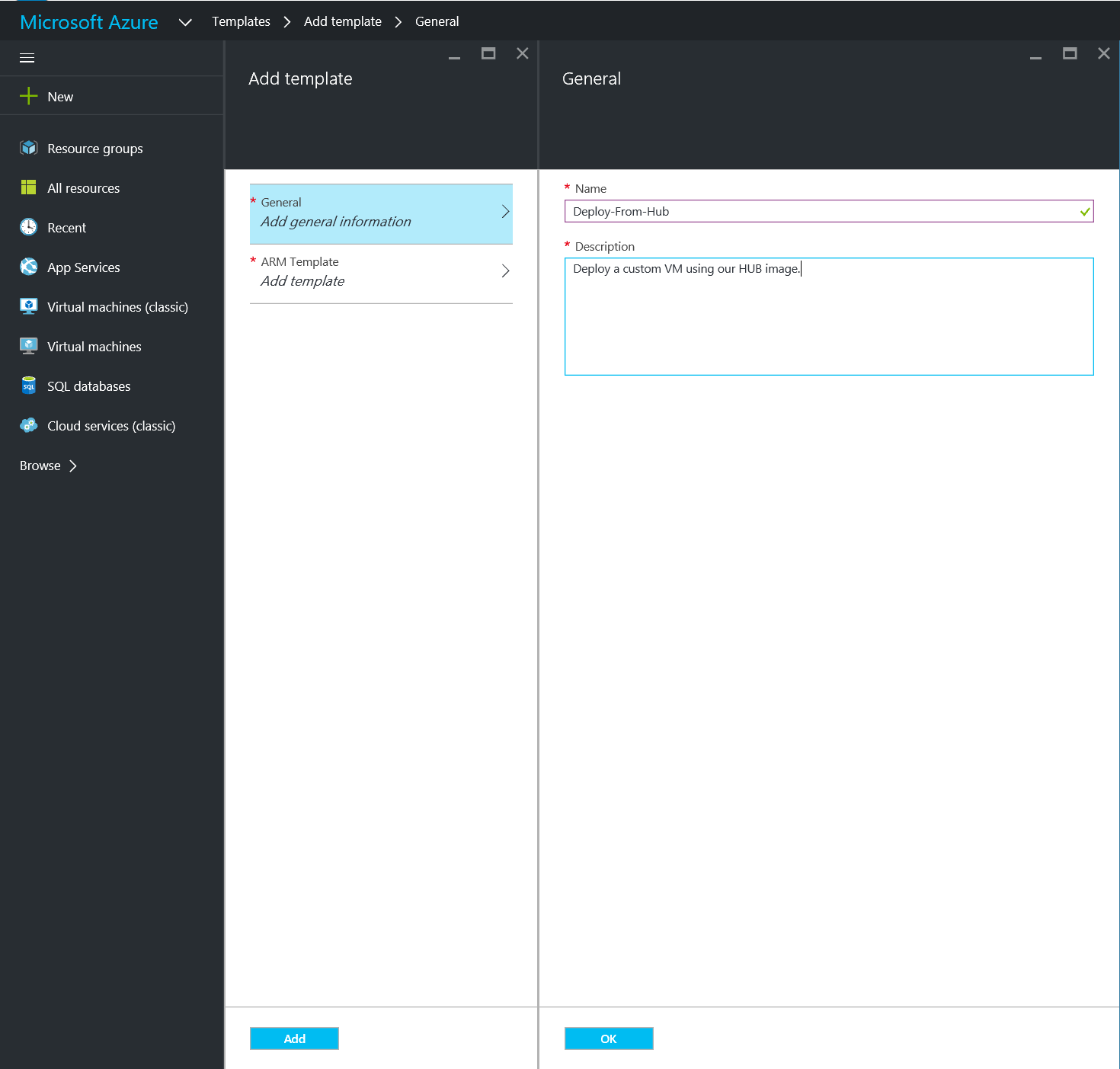

  3. Type in a Name and Description, click OK
    Azure - Browse - Templates - Add - General
  4. Paste in the template above, ensure you change the osDiskVhdUri, and click OK
    Azure - Browse - Templates - Add - General - change uri

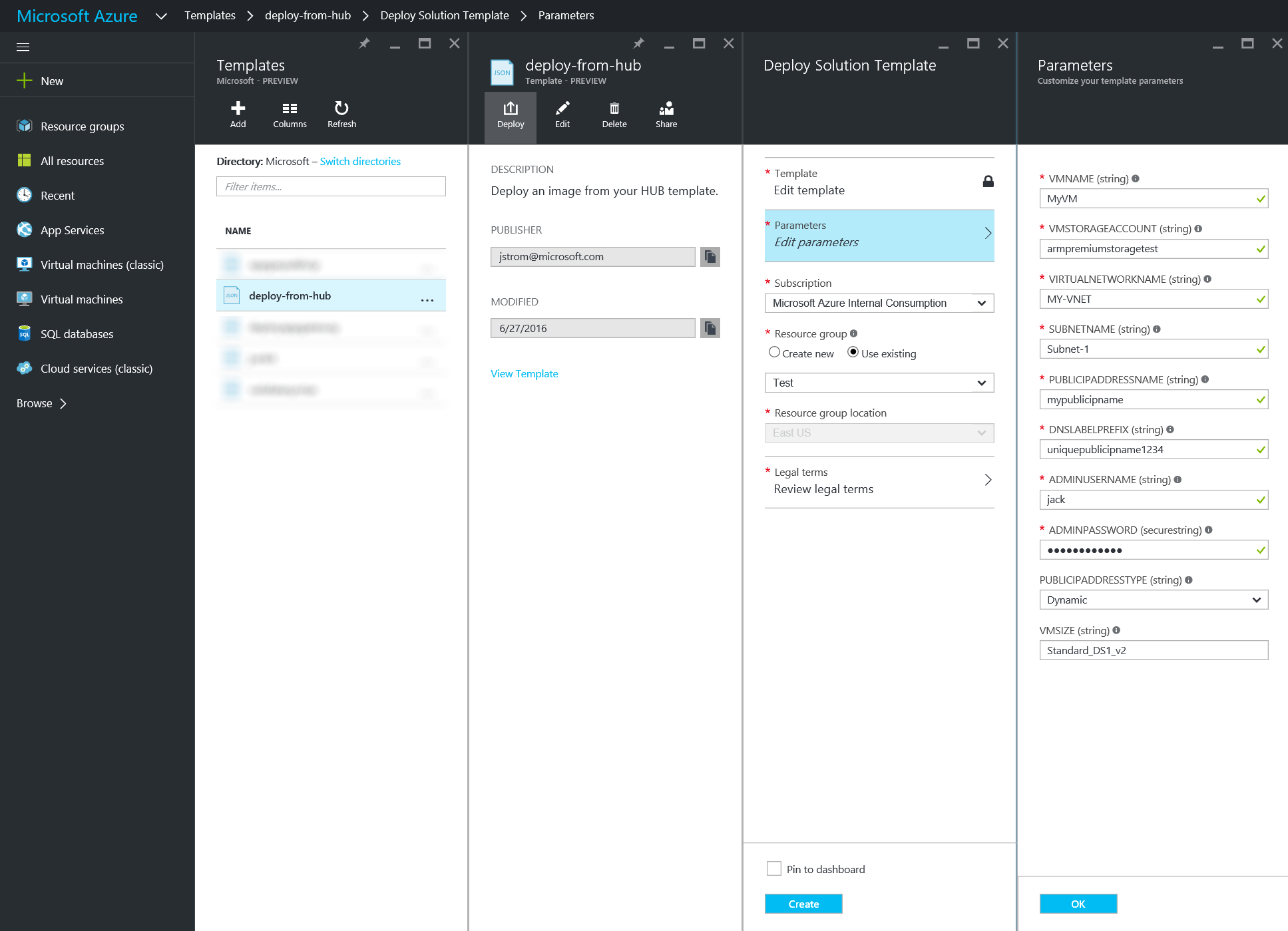

  5. Once you have deploy the script, click Add, select your template, and click DeployDeploy from Template

At this point, you should be able to deploy from the template and create your VM from the HUB licensed VHD! 🙂

Notes: The above script takes into account that you are deploying against standard storage.  You may need to edit the above script if you want to deploy to premium storage as diagnostics data does not support being deployed to a Premium Storage account as of 6/27/2016.

Notes: The above script assumes your Virtual Network and Subnet have been previously created.  It will not create a virtual network and subnet if they do not exist.

Enable SSO (Single Sign On) to On-Premises Exchange OWA (Outlook Web Access) via Azure AD Application Proxy

Edit: This scenario is unofrtunately no longer supported by Microsoft.  More details can be found here: https://learn.microsoft.com/microsoft-365/enterprise/configure-exchange-server-for-hybrid-modern-authentication

Wouldn't it be awesome to be able to do the following with Outlook Web Access being published in your on-premises environment today?

  • Cheap proxy solution to prevent direct internet access to your servers
  • Mask the IPs of your on-premises infrastructure
  • Enable Azure MFA (Multi-Factor Authentication) for OWA?
  • Have a Single-Sign on experience into Outlook Web Application via federation?
  • Have the application be selectable from your "My Apps" page (myapps.microsoft.com)
  • Have the application be selectable from the "Waffle Menu" of Office 365

If you are looking for any of the above, you are in-luck and we can enable this easily through Azure AD Application Proxy.  If you organization is using Office 365 or Azure AD already and have licensing for Azure AD Premium or Basic, you are good to go.  If you have the Enterprise Mobility Suite, this will grant you to Azure AD Premium licensing which should make you good to go as well.

Configuration

  1. Prerequisite: Enable Kerberos Authentication for Outlook Web Access On-Premises
    1. Login to one of your domain controllers and open up Active Directory Users and Computers
      Server Manager - Active Directory Users and Computers
    2. Find the Computer object within your organization we will run the Azure AD Connector on later in the tutorial and right click Properties on it
      Active Directory Users and Computers - Computers - OWA - Properties
    3. Select the Delegation tab, select Trust this computer for delegation to specified services only, check Use any authentication protocol, and click on Add...
      Active Directory Users and Computers - Computers - OWA - Properties - Delegation - Add
    4. Select Users or Computers...
      Active Directory Users and Computers - Computers - OWA - Properties - Delegation - Add - users or Computers
    5. Type in the machine name and click OK
      Active Directory Users and Computers - Computers - OWA - Properties - Delegation - Add - users or Computers - Select Users or Computers
    6. Select http and click OK
      Active Directory Users and Computers - Computers - OWA - Properties - Delegation - Add - users or Computers - http
    7. Click OK on the Add Services page
  2. Pre-Requisite: Enable Exchange On-Premises to use Integrated Windows Authentication (instructions for Exchange 2010 or 2013 can be found below)
    1. Exchange 2010
      1. Open the Exchange Management Console for your Exchange server
        Exchange Management Console (2010)
      2. Expand Server Configuration, select Client Access, under Outlook Web App, right click on your web app and select Properties
        Exchange Management Console (2010) - Outlook Web App
      3. Select the Authentication tab and check Use one or more standard authentication methods.  Once checked, check Integrated Windows authentication and click the Apply and OK buttons.
        Exchange Management Console (2010) - Outlook Web App Properties - Authentication - Integrated Windows Authentication
      4. Open a command prompt
        cmd as Administrator
      5. Execute the iisreset command
        cmd - iisreset
    2. Exchange 2013
      1. Open the Exchange Administrative Center
        Exchange Administrative Center (2013)
      2. Login to the admin center, click on Servers and select the Virtual Directories tab
        Exchange Administrative Center (2013) - admin center - servers -virtual directories
      3. Select server and then double click on the OWA Virtual Directory and select the applications tab
        Exchange Administrative Center (2013) - admin center - servers -virtual directories - owa - authentication
      4. On the authentication tab, select Use one or more standard authentication methods, select Integrated Windows authentication, and click save
        Exchange Administrative Center (2013) - admin center - servers -virtual directories - owa - authentication - integrated windows authentication
      5. Open a command prompt
        Elevated Command Prompt
      6. Execute the iisrest command
        cmd - iisreset
  3. Login to the Azure Portal
    1. https://portal.azure.com
  4. Select All services -> Azure Active Directory on the left side
  5. Select Application proxy in the sub blade and select + Configure app

  6. Enter in the following information for the application:
    1. Name: Outlook Web Access
    2. Internal URL: https://owa.yourdomain.com/owa/ (this is the internal URL to owa)
    3. Pre-Authentication: Azure Active Directory
    4. Connector Group: Default
    5. Click + Add

    6. Select OK if not prompted about having a connector
  7. Once your application is created, you should be redirected to Azure Active Directory -> Enterprise Applications -> Outlook Web Access.  On this blade, select Single sign-on and then select the Windows Integrated Authentication button

  8. Use the following configuration
    1. Internal Application SPN: http/owa.yourdomain.com
      1. This is the Service Principal Name to the Exchange Server.  The value for this was provided earlier in this tutorial.
    2. Delegated Login Identity: User Principal Name
    3. Click Save
    4. Note: If you cannot do Kerberos based authentication (Integrated Windows Authentication) in your environment, you can Discard the changes continue to use Azure AD Application proxy, however the end user will be prompted for credentials just as if they browsed directly to OWA.
  9. Go back to All Services -> Azure Active Directory -> Application Proxy and click the Download connector service button



    1. Click the Accept terms & Download button
    2. Note: Although the download has a generic name, the download is customized specifically for your application (Outlook Web Access in this case).  If you create other applications within your Azure AD tenant, make sure you always use the Download button inside of each application so it generates the correct installer.
  10. Copy the AADApplicationProxyConnectorInstaller.exe connector to any server in your environment that can access your OWA instance internally and run the installer
    AADApplicationProxyConnectorInstaller Downloaded
  11. Check I agree to the license terms and conditions and click Install
    Microsoft Azure Active Directory Application Proxy Connector - I agree
  12. Type in your Global Administrator credentials to register the agent to your Azure AD tenant and click Sign in
    Microsoft Azure Active Directory Application Proxy Connector - Credential Prompt
  13. Click Close if it shows Setup Success
    Microsoft Azure Active Directory Application Proxy Connector - SuccessOptional: You can run the Connector Troubleshooter if you would like.  It will install a quick application that will show you the results of the test in your web browser once it has completed.
    Azure AD Application Proxy Connector Troubleshooter
  14. Go back to the Azure Portal and navigate to Azure Active Directory -> Enterprise Applications -> Outlook Web Access.  Select Users and groups and click the +Add user button to assign the group or users that should use the application.


    1. Note: This group could be synchronized from on-premises to Azure AD or created in the cloud
    2. Note: Assigning a user or group to this application will automatically make the application show up in the My Apps portal
    3. Note: Users or Groups must be defined to use the application or they will receive an error upon logging in

Test

  1. Login to https://myapps.microsoft.com as one of the assigned users to the Outlook Web Access application
  2. Select the Outlook Web Access application

If all went well, you should be logged into Outlook Web Access on-premises and see your corresponding mailbox.  At this point, I would proceed with adding a vanity domain name that matches your organization as well as corresponding SSL certificate for the domain name instead of leveraging the default msapprpoxy.net domain name.  Additionally, you can always find a nice little icon for the application to make it look like OWA as well 🙂
